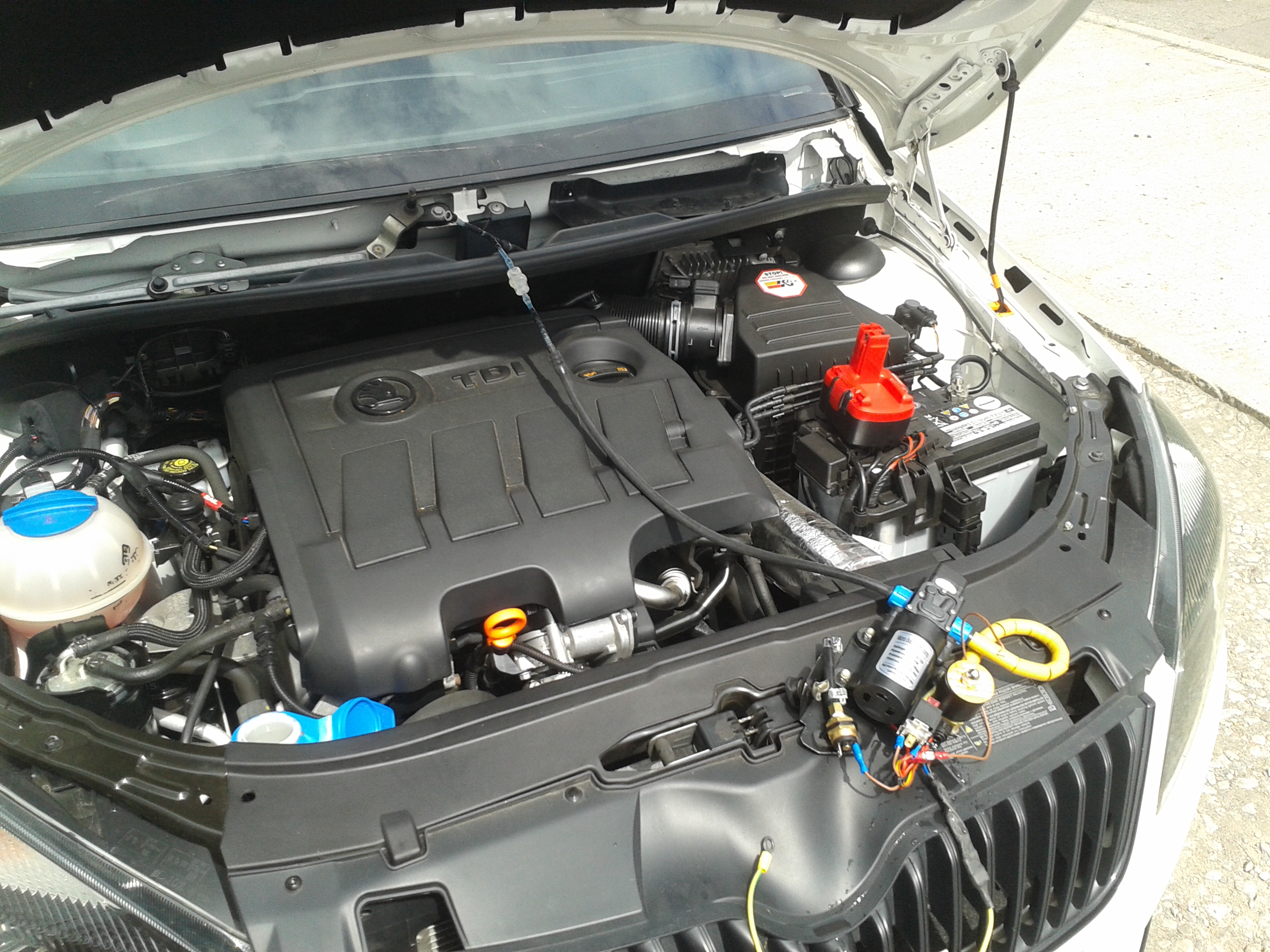

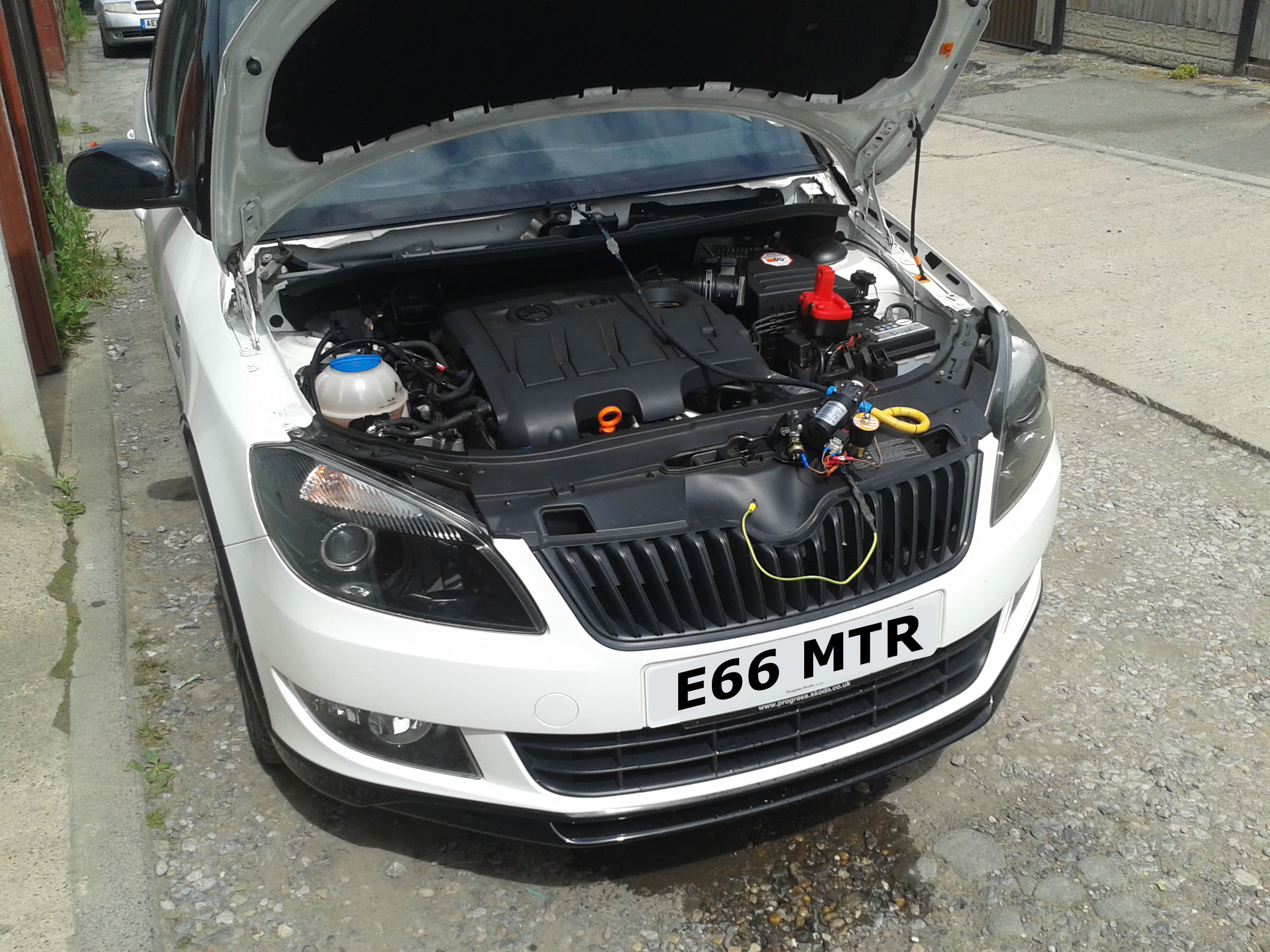

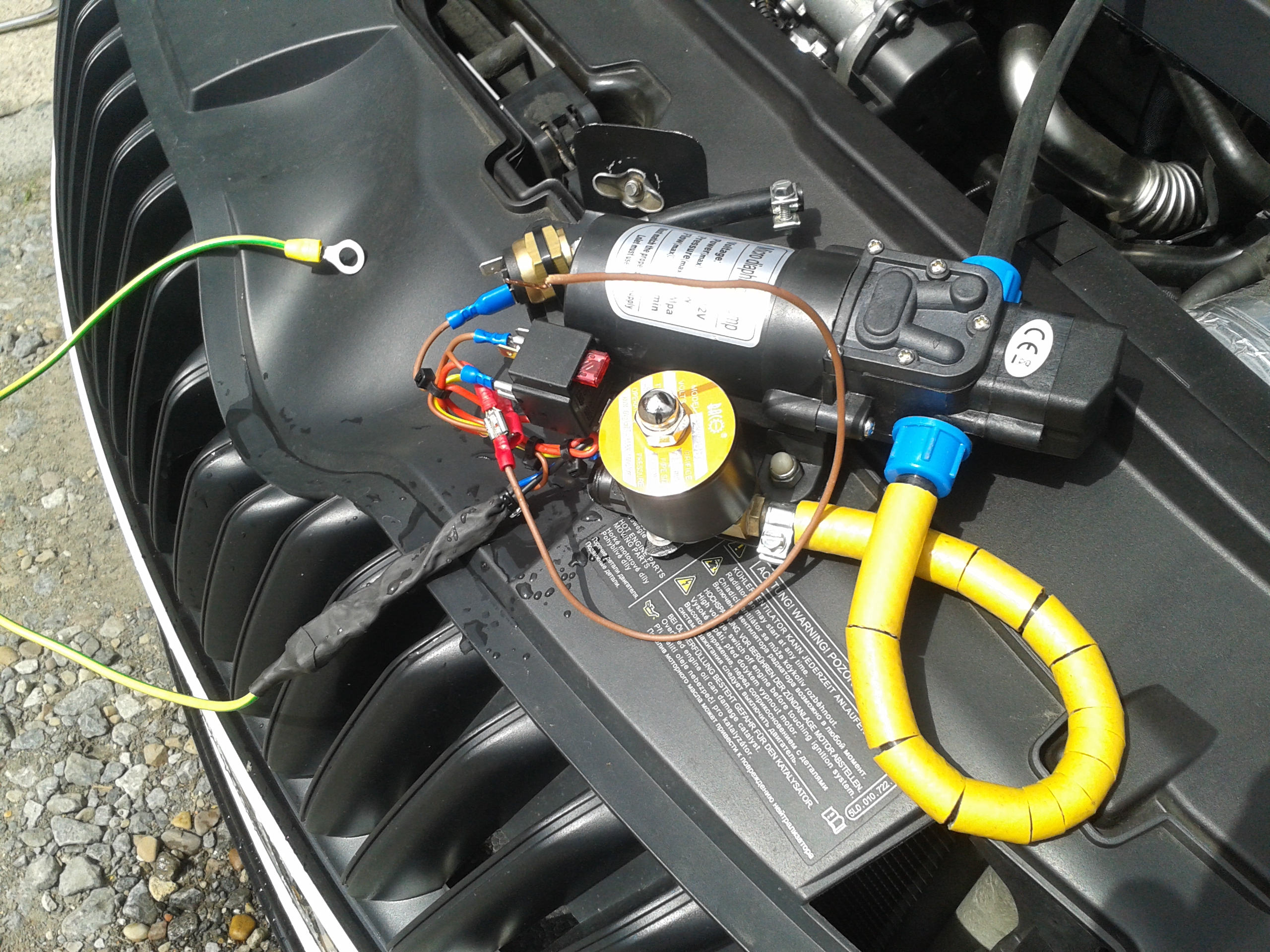

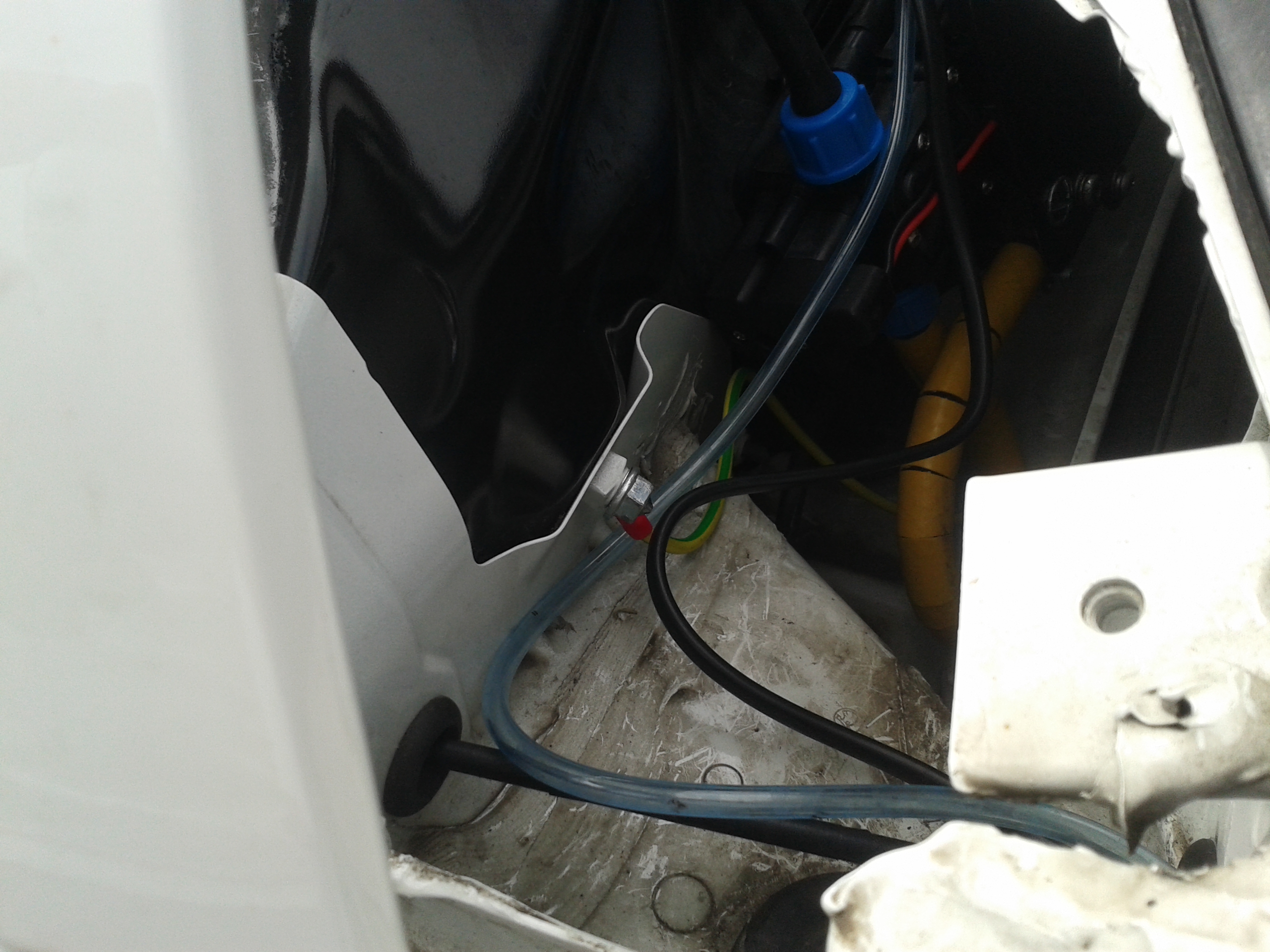

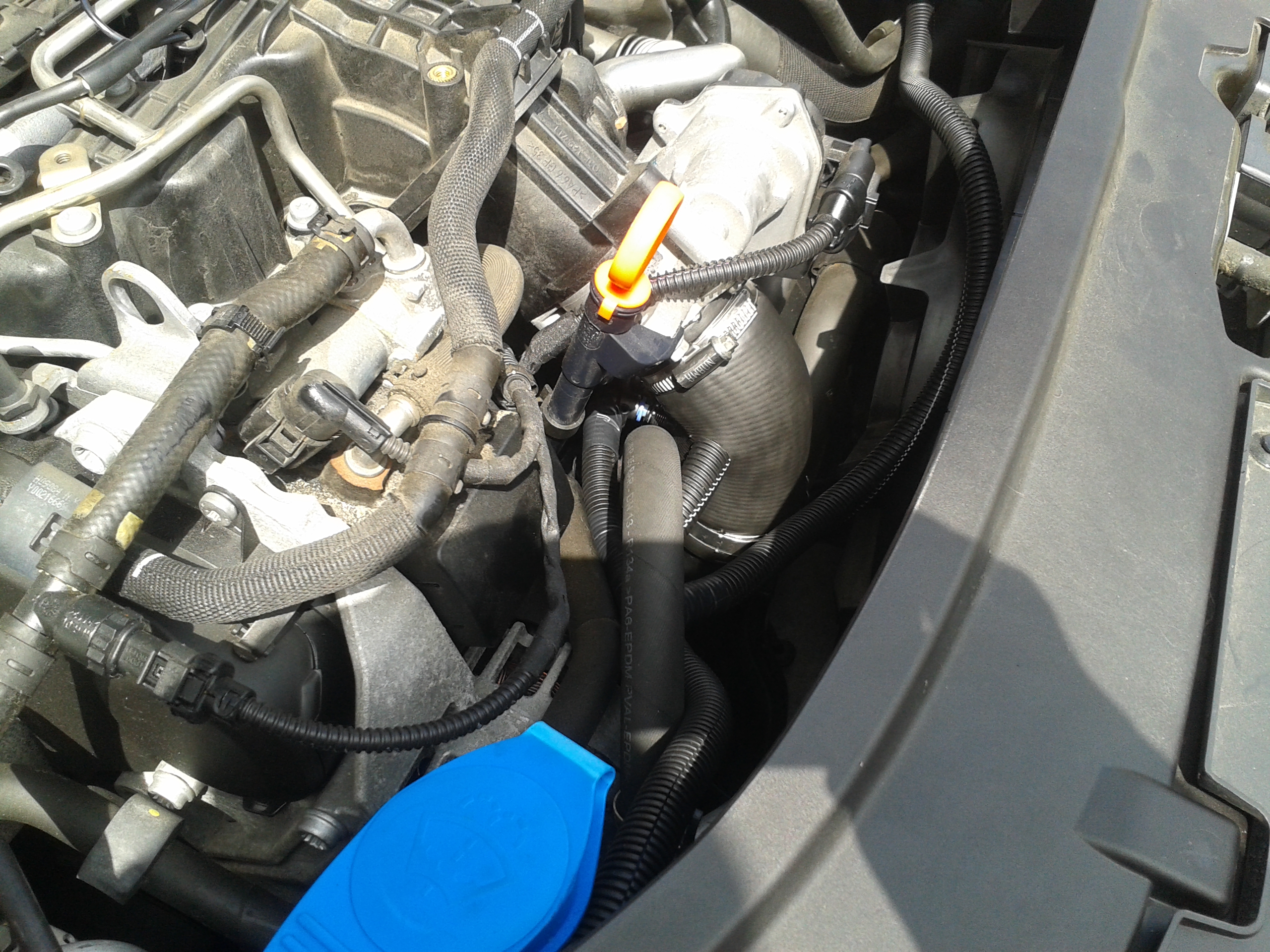

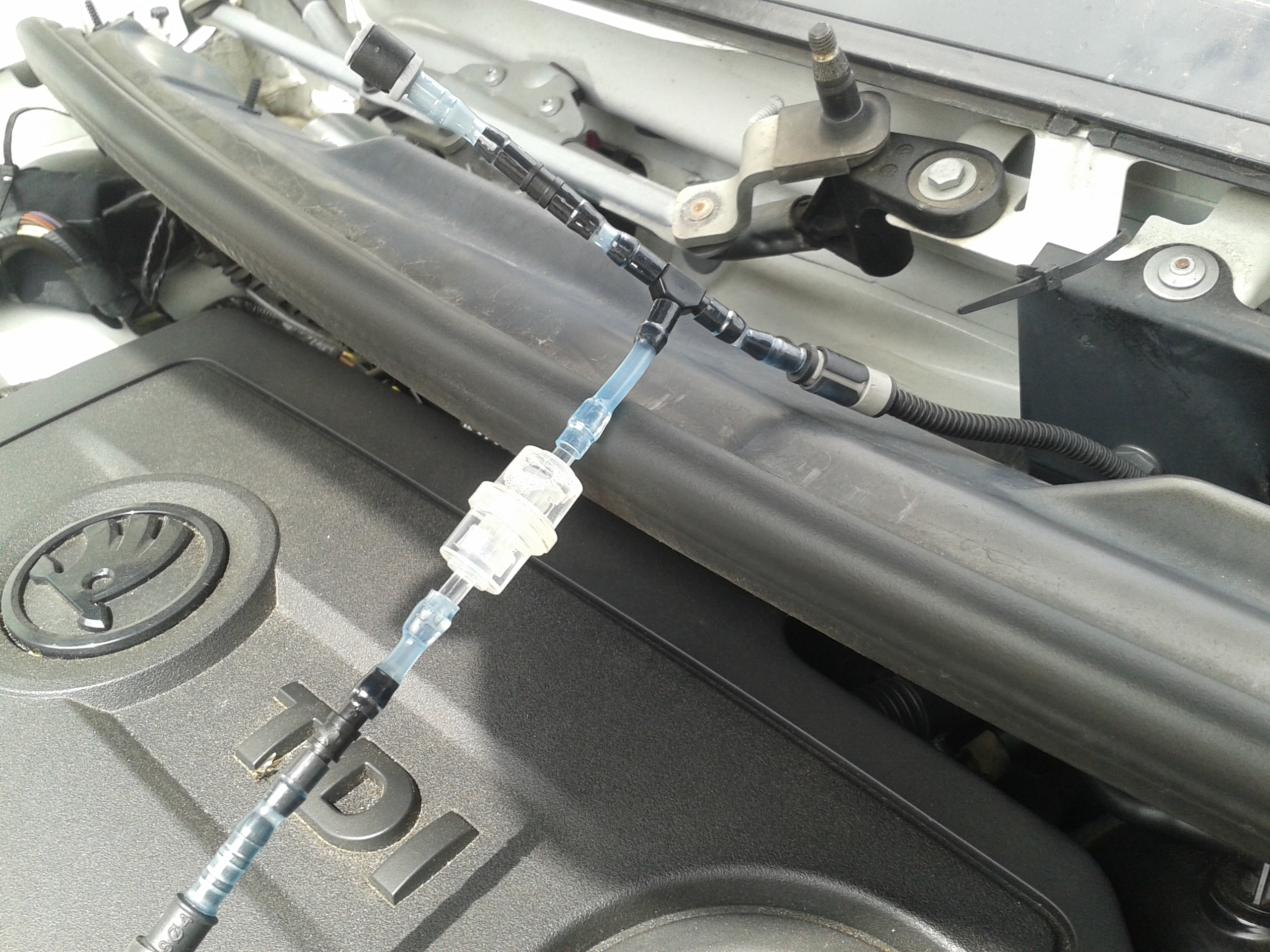

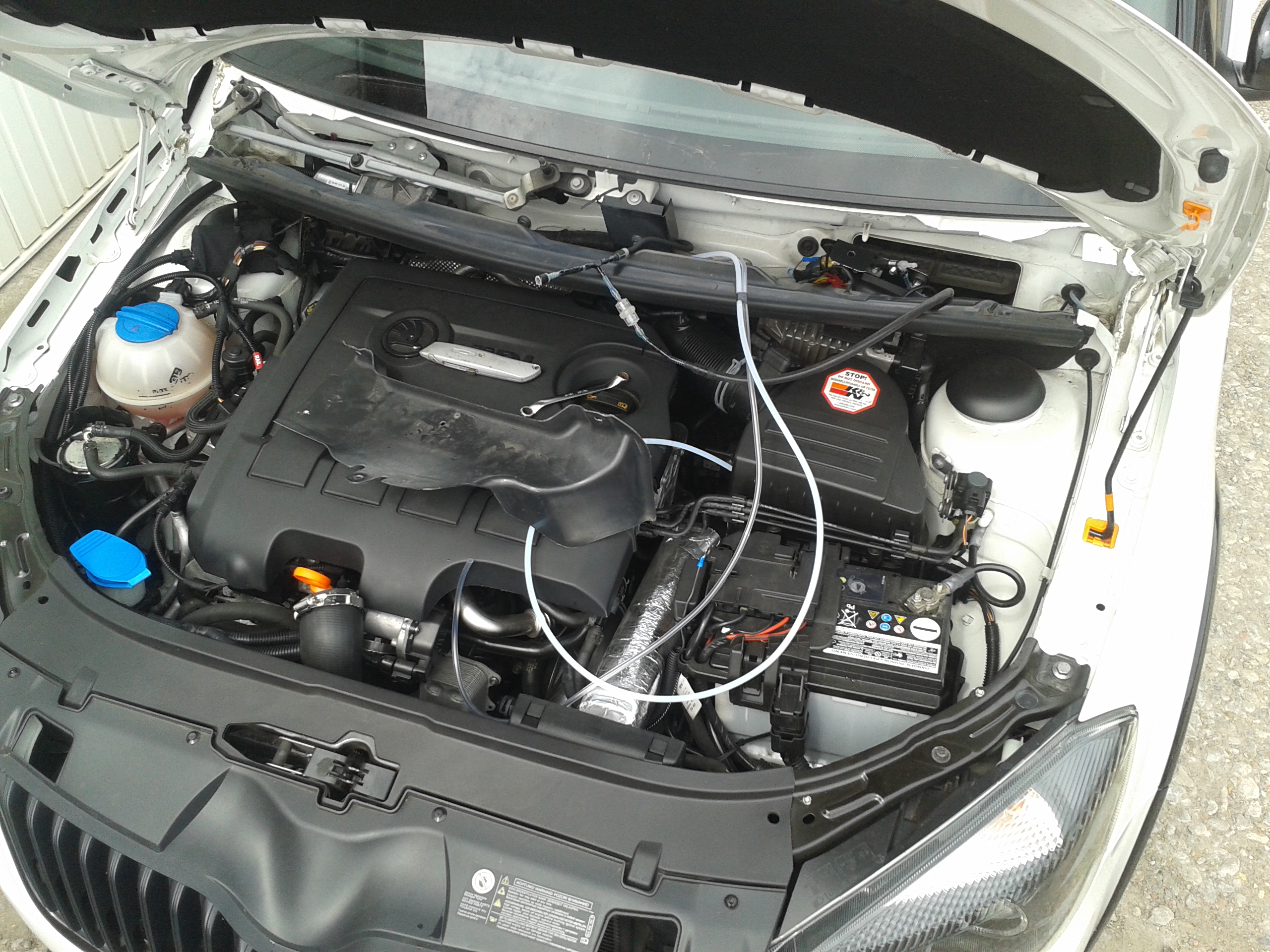

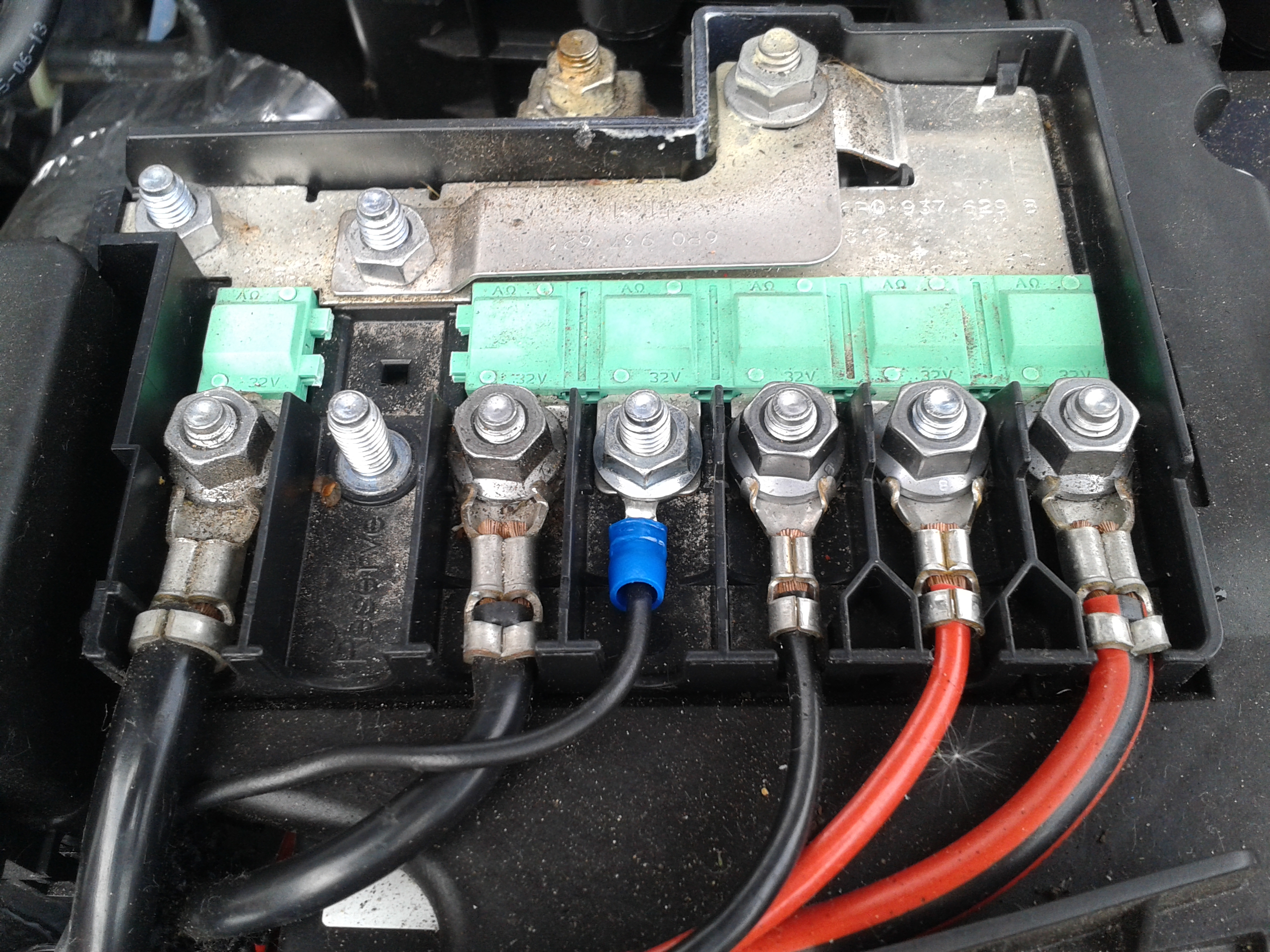

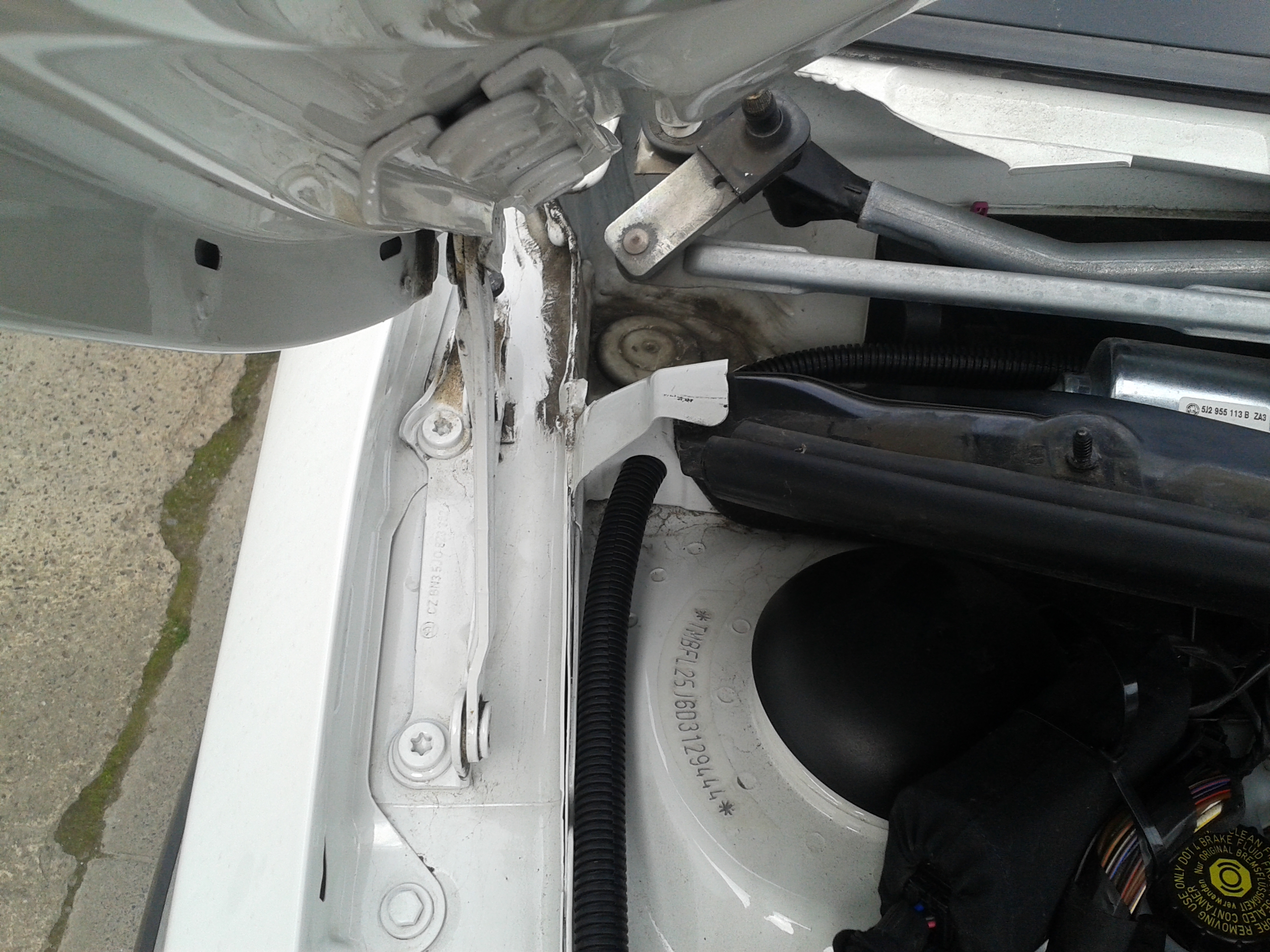

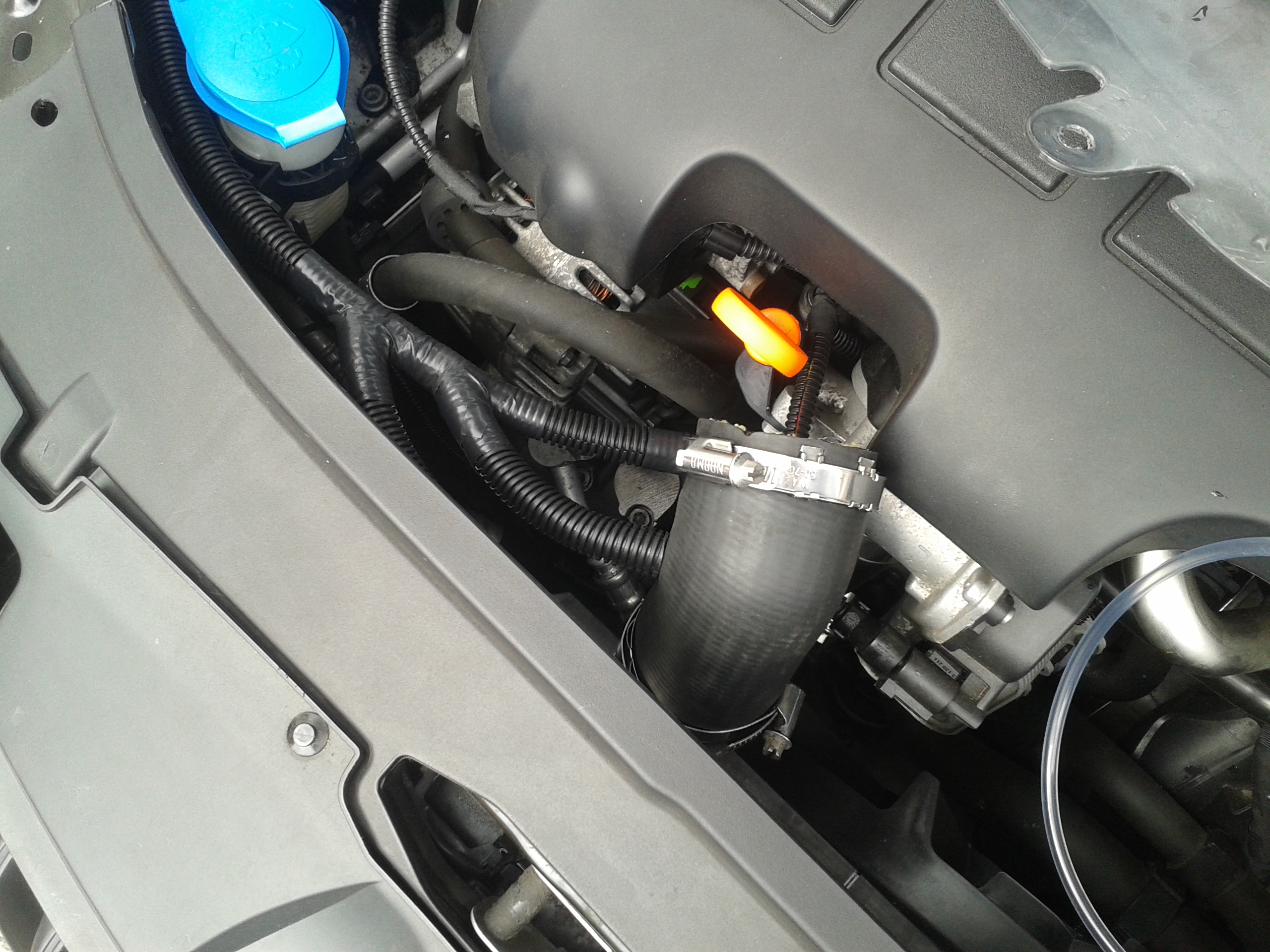

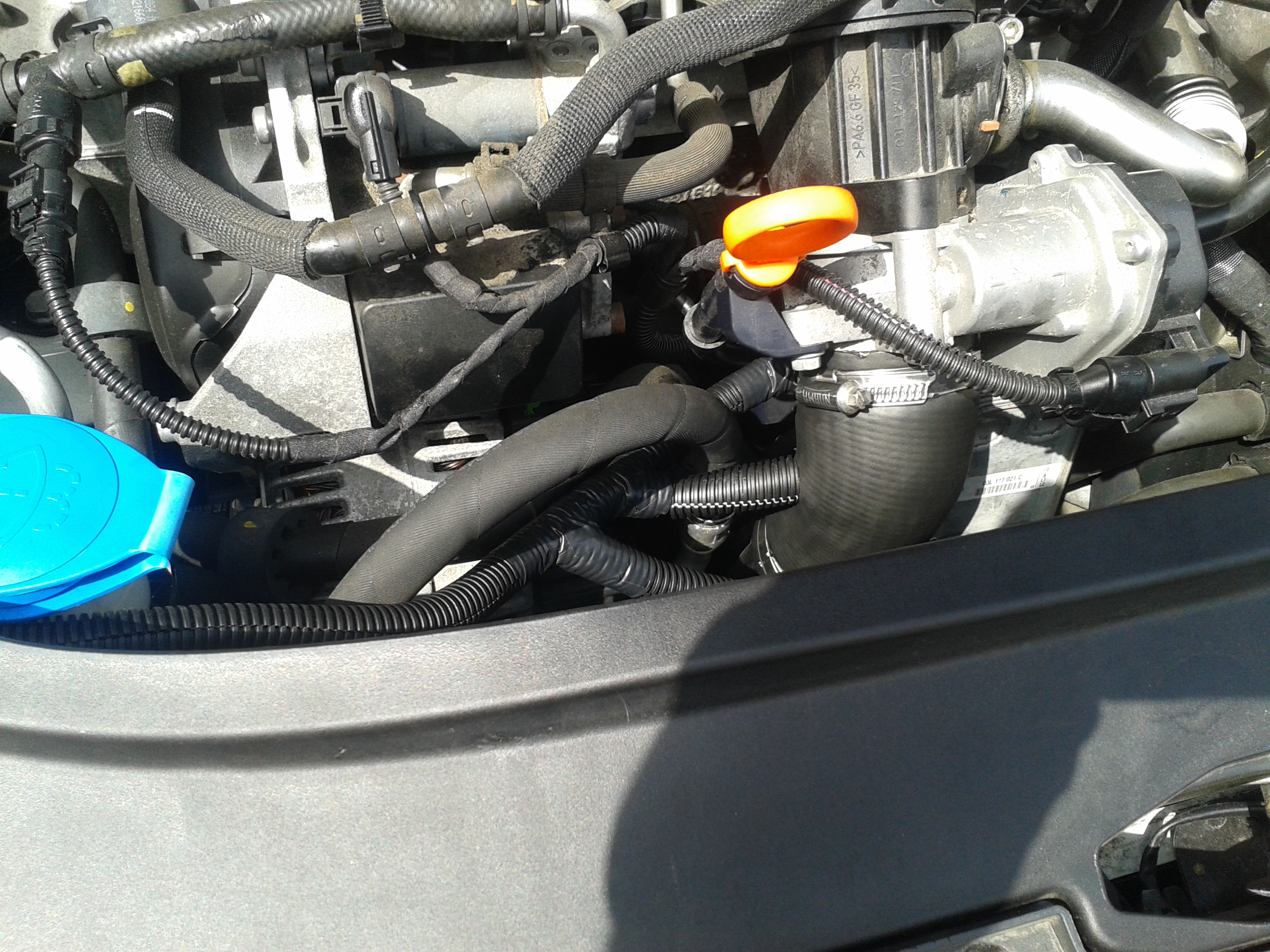

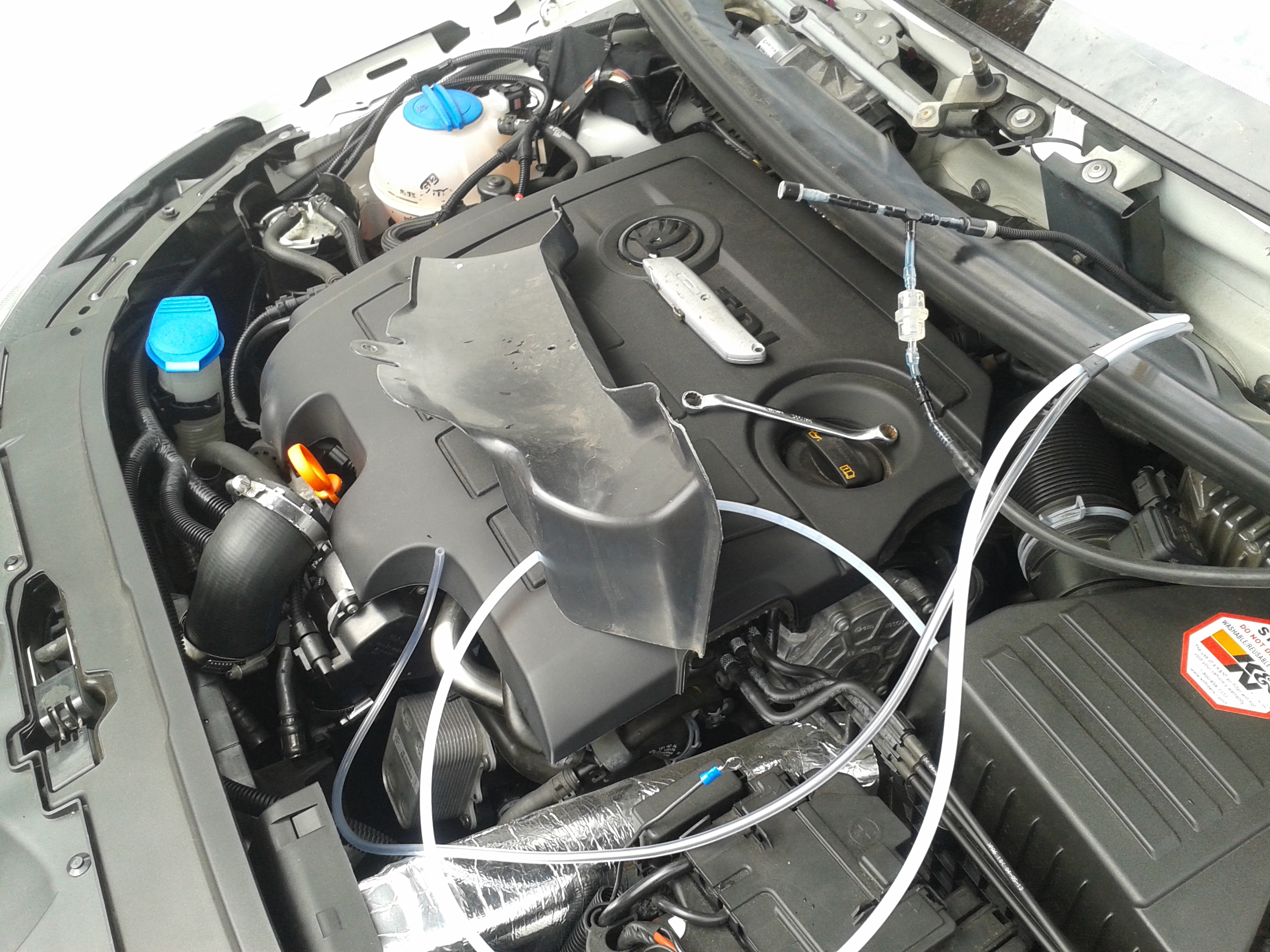

Hello Steemy Meisters, After months and months of delays, problems, more delays and then even more problems..... ..... I've finally got my arse in gear and installed the **SH2OMI** system into the **Skoda Fabia 1.6TDi 105PS CAYC** variant (**135PS** with the BlueSpark tuning module fitted). If you've been following the latest posts then you'll be aware that I've had to ditch the 'active' LED circuit on the glovebox control panel as I was having major issues all based on resistance or current drain or something like that. It was getting me MAD so I thought "Hey!" just remove that portion of the circuit and all is good :) So on the control panel now, the orange 'active' LED has been removed (and associated wiring) and a small piece of black insulating tape has been applied to cover the hole up.  <hr> The installation: First of all, once I had removed the wiper blades and scuttle cover; I temporarily connected up the system water feed pipework to the car's windscreen wash pipe and ran the pump and solenoid valve off the cordless drill battery to make sure the water flow from the windscreen wash bottle was unrestricted. As you can probably tell from the water on the front grill and the road that this first installation test was successful :)     <hr> I managed to use a small 6mm stud for the pump/solenoid earthing point under the scuttle and used a 'grippy' nut to hold the earth cable in place. I checked continuity between the stud and the battery negative post prior to selecting this option. You can also just make out the pump/solenoid/relay/boost-switch assembly in the darkness of the below picture to. Also in the picture you can see the bonnet release cable (going into the black grommet), system 'ON' control wire from the glovebox control panel and the clear PVC tubing running up to the boost gauge which is also in the glovebox (see previous posts on this installation).  <hr> Next, I roughly placed the inlet rubber manifold pipe and the associated tubes/conduit in the position they will be once the install is complete. I fed the conduit through the spare firewall hole after removing the grommet and fed the tubing up to the pump/solenoid assembly in readiness to cut the boost feed tubing and water injection pipe down to the right size. I also connected up the 12v main feed to the assembly relay before I get to the point of hooking it up to the battery terminal. (*You might note that the engine bay is relatively clean as I gave it a good degreasing, foam-up, brush, low pressure rinse, towel-dry & 303 Aerospace Protectant coating a couple of months ago*).     <hr> Getting close to finalizing the installation at this point, which I estimate took me 3 hours in total on Saturday morning. I connected the 12v main feed up to a spare terminal on the battery and thankfully there were no sparks or smoke ;)  <hr> The final part was to swap out the original intake manifold pipe for the modified one fitted with the boost pressure feed tubing and the water/methanol injection bulkhead/misting nozzle. I had a lot of painful fun with this as I had to shorten the boost feed tubing by 2 inches to allow the pushfit water tubing to reach round to the back of the manifold pipe properly without putting too much undue stress on the coupling or bulkhead. As all the flexible conduit is very similar to the VAG factory stuff, it does help make for a stealth installation..... which is exactly the effect I was after :)   <hr> There are a few tweaks and tie-wraps required to tidy everything up, as well as some water-proofing stuff for the electrics but all in all I'm very happy so far with the whole install. Since inception to this point I think it's probably been about 12 months in total; quite a lot for such a simple design. **SO WHAT HAPPENS NOW!!!** Well, I did a 20 minute test drive on Saturday and I'm not sure if it's the placebo-effect or just that I was in 'giddy-kipper' mode but there did seem to be a slight performance gain. I'm not expecting a +25hp gain that I could get from a commercial water/methanol kit for a diesel engine of this size but anything over 15hp would be nice. Trouble is, this sort of power gain on top of 132hp isn't going to make a massively noticeable difference but might shave half a second off the 0-60 times if I'm lucky. I have a OBD device (Carista module) that connects to my android phone and so I think I can measure air intake temps. If that's the case then I should be able to see temperature drops when the system is active (cooler air intake charge equals bigger bang!). I will also try and do some 3rd & 4th gear (30-60mph & 30-70mph) full power runs very soon to see if I can drop a second or two. <hr> So there you go folks!!! Apart from a few bits here and there and some test data gathering; the **SH2OMI** project has reached completion. Many thanks to all who have supported this project since I started posting about it on [Steemit](https://steemit.com/cars/@eggmeister/sh2omi-should-i-diy-stealth-water-methanol-injection-system). **Catch you all soon and don't forget to upvote, comment & resteem please :)** Cheers, **EggMeister.**  <hr>  All previous posts on this project can be found here: https://steemit.com/cars/@eggmeister/so-i-m-not-going-crazy-stealth-water-methanol-injection-sh2omi-2nd-supplemental-update-28-05-2018 https://steemit.com/cars/@eggmeister/am-i-going-crazy-stealth-water-methanol-injection-sh2omi-supplemental-update-24-05-2018 https://steemit.com/cars/@eggmeister/delay-due-to-relay-stealth-water-methanol-injection-sh2omi-update-23-05-2018 https://steemit.com/cars/@eggmeister/sheath-up-stealth-water-methanol-injection-sh2omi-update-4-04-2018 https://steemit.com/cars/@eggmeister/resist-the-pressure-stealth-water-methanol-injection-sh2omi-update-22-03-2018 https://steemit.com/cars/@eggmeister/don-t-blow-to-ard-stealth-water-methanol-injection-sh2omi-update-16-03-2018 https://steemit.com/cars/@eggmeister/intake-a-go-go-stealth-water-methanol-injection-sh2omi-update-14-03-2018 https://steemit.com/cars/@eggmeister/sprung-a-leak-stealth-water-methanol-injection-sh2omi-update-13-03-2018 https://steemit.com/cars/@eggmeister/minor-mods-stealth-water-methanol-injection-sh2omi-update-12-03-2018 https://steemit.com/cars/@eggmeister/nbx0ndi8 https://steemit.com/cars/@eggmeister/i-did-a-boo-boo-stealth-water-methanol-injection-sh2omi-update-9-03-2018 https://steemit.com/cars/@eggmeister/q3wyu12m https://steemit.com/cars/@eggmeister/compact-module-for-plan-b-stealth-water-methanol-injection-sh2omi-update-25-02-2018 https://steemit.com/cars/@eggmeister/plan-b-stealth-water-methanol-injection-sh2omi-update-23-02-2018 https://steemit.com/cars/@eggmeister/yedjwzu8 https://steemit.com/cars/@eggmeister/79lsrrbd https://steemit.com/cars/@eggmeister/glove-box-installation-for-stealth-water-methanol-injection-sh2omi-update-17-02-2018 https://steemit.com/cars/@eggmeister/8swbskan https://steemit.com/cars/@eggmeister/supplemental-update-to-diy-stealth-water-methanol-injection-boost-gauge-switch-panel-update-sh2omi https://steemit.com/cars/@eggmeister/btxnk2px https://steemit.com/cars/@eggmeister/diy-stealth-water-methanol-injection-system-sh2omi-update-06-02-18 https://steemit.com/cars/@eggmeister/diy-stealth-water-methanol-injection-system-sh2omi-update-28-01-18 https://steemit.com/cars/@eggmeister/a-follow-up-post-to-a-question-guys-electrical-expertise-required-diy-sh2omi https://steemit.com/cars/@eggmeister/a-question-guys-electrical-expertise-required-diy-sh2omi https://steemit.com/cars/@eggmeister/it-s-not-a-bomb-diy-stealth-water-methanol-injection-system-sh2omi-update-15-01-18 https://steemit.com/cars/@eggmeister/diy-stealth-water-methanol-injection-system-sh2omi-update-14-01-18 https://steemit.com/cars/@eggmeister/new-video-part-2-diy-stealth-water-methanol-injection-system-sh2omi-update-12-01-18 https://steemit.com/cars/@eggmeister/new-video-diy-stealth-water-methanol-injection-system-sh2omi-update-6-01-18 https://steemit.com/cars/@eggmeister/increasing-power-diy-water-methanol-kit-sketches-and-musings https://steemit.com/cars/@eggmeister/more-power-water-methanol-injection-product-placement https://steemit.com/cars/@eggmeister/sh2omi-should-i-diy-stealth-water-methanol-injection-system
