## Good Evening Y'all, today I began running the wiring and setting up the battery bank for the trailers solar panels.

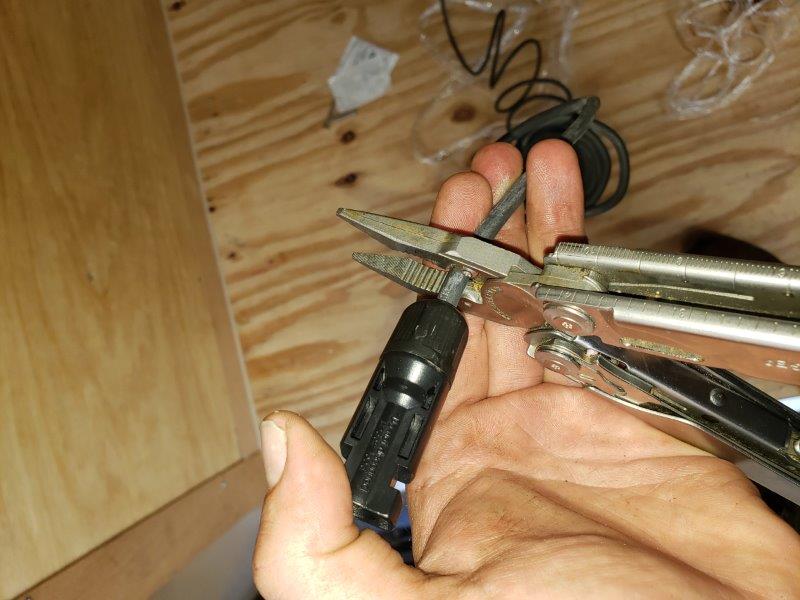

## I started by cutting the MC4 connections off my wiring that was set up from the Sol-Ark Product. I needed to cut these connections off to feed the wiring through the trailer.

<center>![20180919_155727.jpg](https://cdn.steemitimages.com/DQmTKBou5GQa69YCDubWhfq2t9Beu4fw8AEb2j3XcoPYd1X/20180919_155727.jpg)</center>

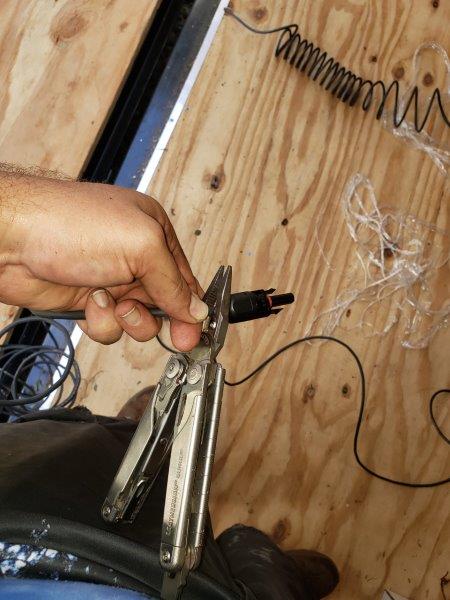

## I cut the + connector on the other wire since I needed both a positive and negative wire on the outside of the trailer so I can connect the panels in series.

<center>![20180919_155835.jpg](https://cdn.steemitimages.com/DQmTKa1BvaLCitKNjiMEwwoREq6UaVtV3gtqSgWyaARq2jM/20180919_155835.jpg)</center>


<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

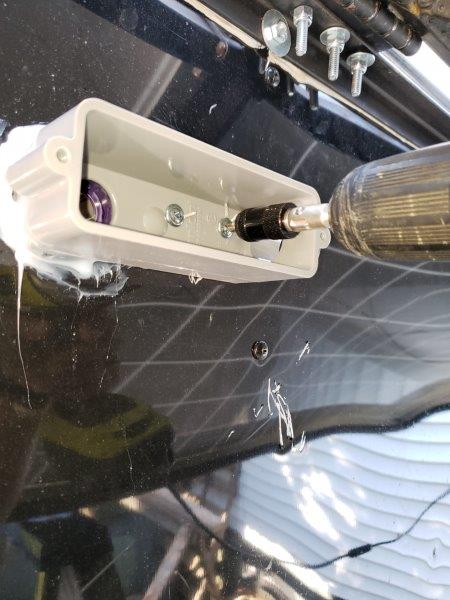

## Using self driving 1/2" Lath screws I fastened the LB to the trailer to ensure it will be mechanically connected to the trailer.
<center>![20180919_160800.jpg](https://cdn.steemitimages.com/DQmXd4jbmoWf5eAnngY4KiuHT3VgX3SYnv91rYk6k9h6rnN/20180919_160800.jpg)</center>

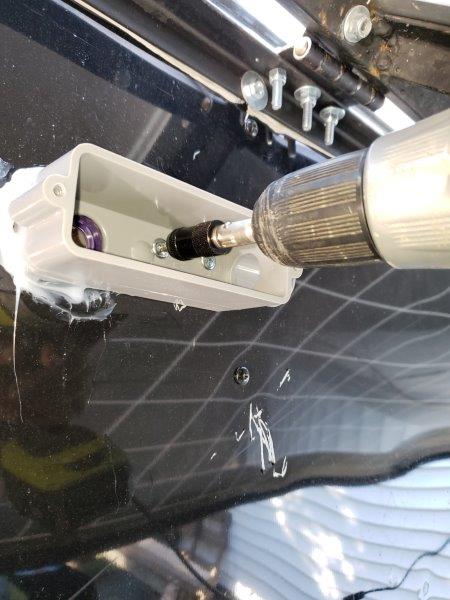

## I used 2 screws to really make the LB secure.
<center>![20180919_160807.jpg](https://cdn.steemitimages.com/DQmZXqMz3wirgD2uD1Rp3mjXDn217EFDZGGGAXeRULMKstu/20180919_160807.jpg)</center>

<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>
## I fed the wire into the trailer one at a time.
<center>![20180919_160938.jpg](https://cdn.steemitimages.com/DQmP1YsY9cFU1T2MQ8tTsUZAnWQ64pp8EYNDr7x4rjhowck/20180919_160938.jpg)</center>

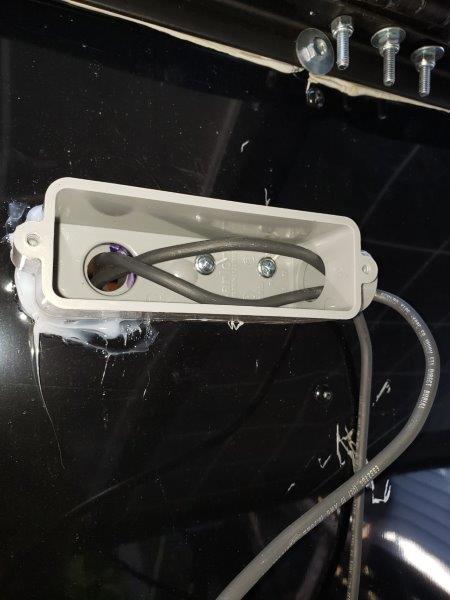

## I fed the second wire in with no troubles.
<center>![20180919_161317.jpg](https://cdn.steemitimages.com/DQmYkgTyTobnekpVzfWScnbVvM7NAHPviN94R7AVgD4rLAM/20180919_161317.jpg)</center>

<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

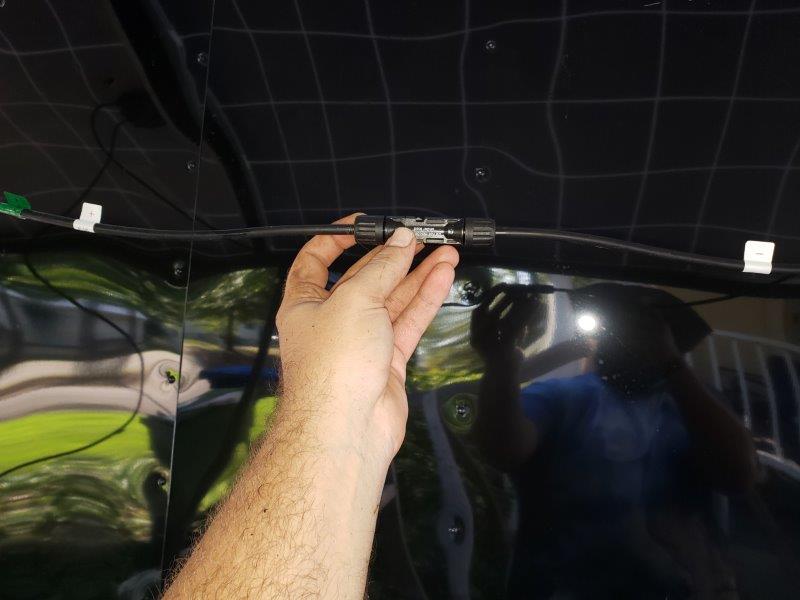

## I connected the positive and negative MC4 connectors of the 2 solar panels.
<center>![20180919_160242.jpg](https://cdn.steemitimages.com/DQmZfVLeaDUBNT1jj4zLEW1qu5fAN85zLUFKuhbZWvAbmFW/20180919_160242.jpg)</center>

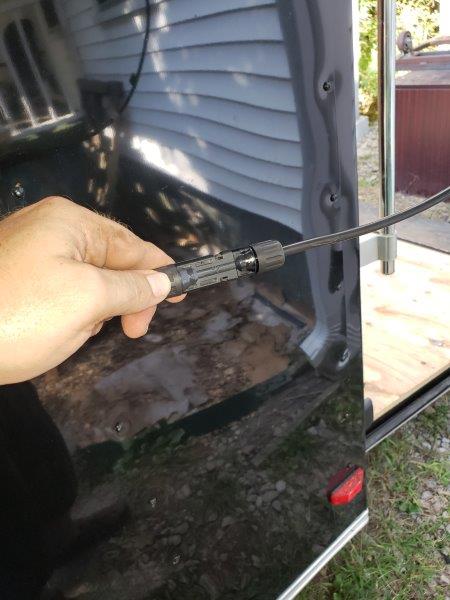

## I then connected the + connector from the panel on the right to route inside the trailer.
<center>![20180919_161511.jpg](https://cdn.steemitimages.com/DQmRokV4NyazFR4UZgKDdUffd4UkdDkm4JLYYv65okQaJav/20180919_161511.jpg)</center>

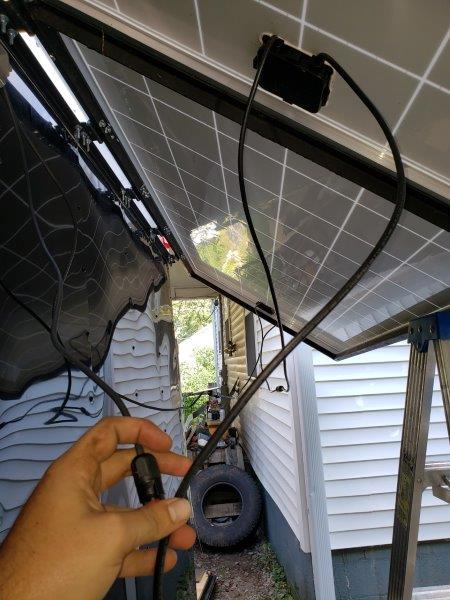

## I connected the - connector on the left panel to route inside the trailer.
<center>![20180919_161737.jpg](https://cdn.steemitimages.com/DQmWCF9HNbkRdkTD62xyLudqQ9CVnVtaeMebgwqY17QJvpB/20180919_161737.jpg)</center>

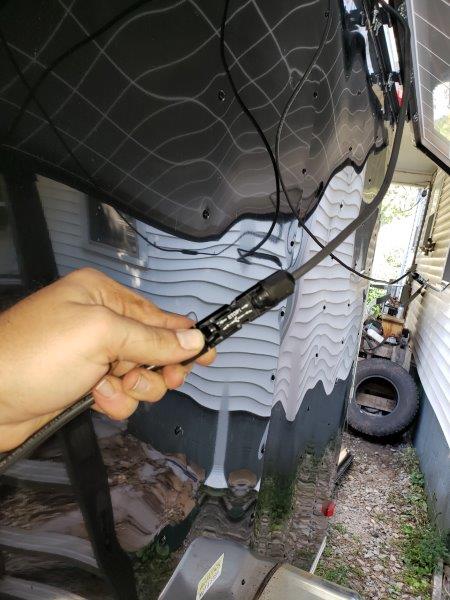

## The MC4 connections snap together very easily and hold tight. There is a special tool that makes releasing the connections easier I will show in the next post.
<center>![20180919_161808.jpg](https://cdn.steemitimages.com/DQmXBW6EpagXW957WJPLee8TQgNa5iFwfxe1VhwJrWNikQR/20180919_161808.jpg)</center>


<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

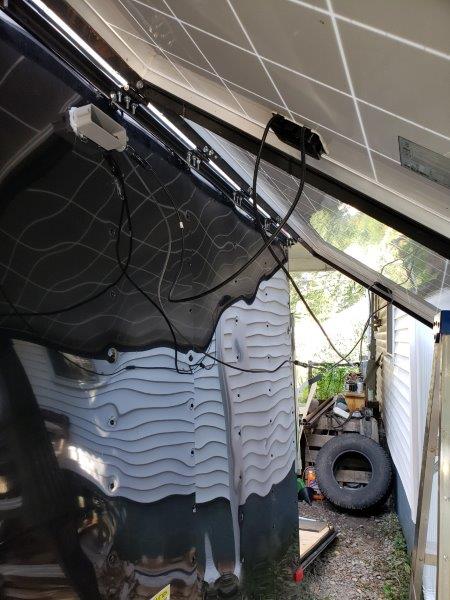

## Here is the overall view of the wiring on the outside of the trailer. I will need to dress the wiring and secure them to the panels to keep them from shifting around in transport and wearing out.
<center>![20180919_161847.jpg](https://cdn.steemitimages.com/DQmcQSeZugaUNTA1mSGLZfUm97S5RgytHowXa1SBQTYhXkW/20180919_161847.jpg)</center>

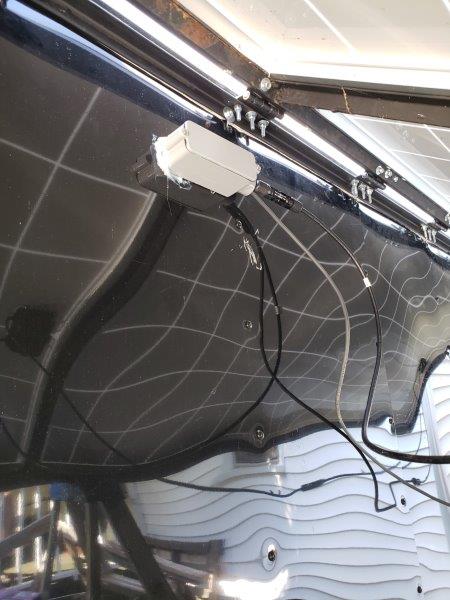

## Another view after taking the slack out of the cable. The - connector of the left panel is butting up to the entrance of the LB. I will dress this up better and come up with a good cable management set-up.
<center>![20180919_162000.jpg](https://cdn.steemitimages.com/DQmbHev3RiSc31KwJfb5vG9Su8VQrw23beC9tTSobib8ifS/20180919_162000.jpg)</center>


<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

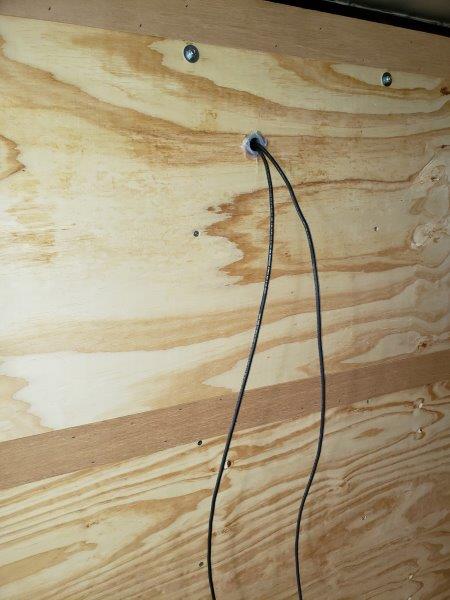

## Here's the view of the cables entering the trailer.

<center>![20180919_162057.jpg](https://cdn.steemitimages.com/DQmedQm26cb6DVDoLKjnXBnhiwBKbtKiqjh6Gjh4wkRUvRk/20180919_162057.jpg)</center>

## As you can see, I have much more cabling than necessary. I got a great comment from @amberyooper to put my wiring in conduit on the inside of the trailer, and I will incorporate that on the inside to keep my cabling from moving around and wearing out. Thank You @amberyooper for your suggestion.
<center>![20180919_162103.jpg](https://cdn.steemitimages.com/DQmeXRHQ4S3RBypMau36y7HHYWzJukE2aHQ7RJRJJGA33rw/20180919_162103.jpg)</center>

<center>https://s8.postimg.cc/655ly3kid/Screenshot_20180620-161549_20180622102126928_20180728081927270.jpg</center>

## Thank you for your time if you checked out my update!
