**05-07-2024 - Energy systems - Multi-stage action turbine with speed jumps [EN]-[IT]**

***Speed-jumping multi-stage action turbine***
Curtis turbines are the best-known speed-action turbines.

*functioning*
Curtis turbines consist of a distributor that processes all the pressure energy into kinetic energy. Precisely in this phase the entire pressure drop is reduced. Following the distributor we find two or three action impellers. These impellers are interspersed with one or two rectifiers, each of which transforms a fraction of the kinetic energy of the flow entering the impeller into mechanical work.
NOTE:
The rectifier processes neither kinetic nor pressure energy.

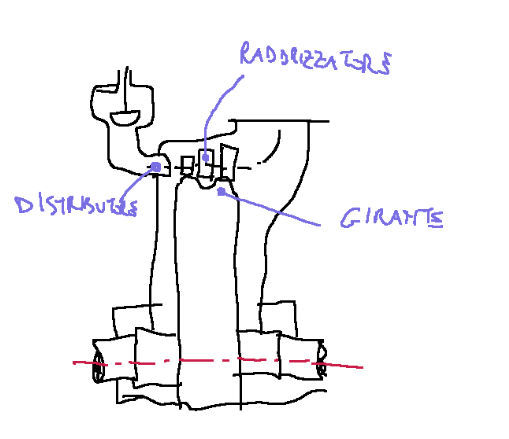

Below is a diagram of a Curtis type steam turbine.

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23uFwixB45JAdF38ybZMRjdQzoxKdw4XkqjfsGXKgkLxJCcHooXQAy7xpvPgUnBCBh1Zz.png)

**Speed ​​Triangles**

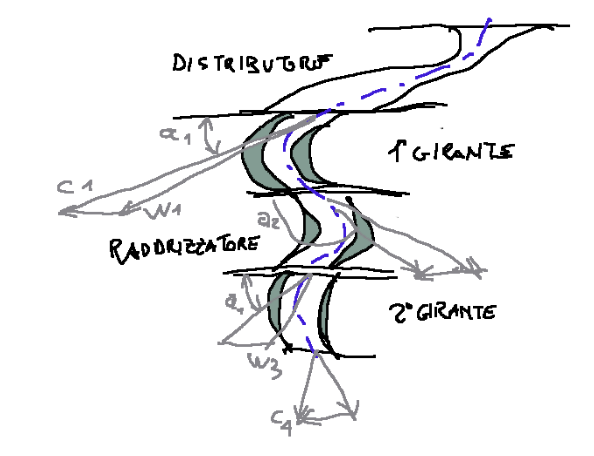

Below is a sketch in which the speed triangles are drawn (grey colour)

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23wgoGrprKWpPpczcZrubUseXjiJU3LBpJauWMrDtUDKvgVy8yyc82nxvxDv8hCn785C1.png)

**Blade performance**
Below is the expression of the blading efficiency

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/EoCpLynGkZNs72PqMx8q9nTwH6ocjqSc6BoKjuZ1CgYwHrPQzobrH6e4tFL7Z3uVGrb.png)

In the theoretical case there is a maximum efficiency value ηp=0.67.

NOTE:
Curtis turbines, compared to De Laval turbines, operate in conditions of maximum efficiency with a lower u/c1 ratio, and are therefore capable of producing a greater enthalpy jump albeit with a lower efficiency.

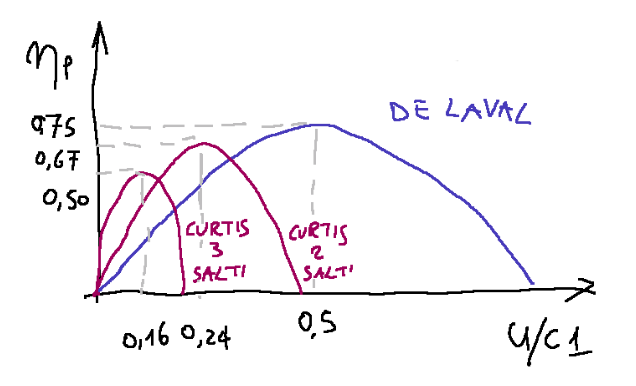

Below is a small graph with De Laval and Curtis turbines

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23tcP5UHDuvJUugbxYvRFhV7U4GGDtkbiLDqtAkaBgh5R16GzjQnmS3CV5HM5Y2wxmrsm.png)

**Conclusions**
Curtis turbines and De Laval turbines are two different types of steam turbines used to convert steam energy into mechanical energy.

**Request**
Is this the first time you've heard of Curtis turbines and De Laval turbines?

---

https://images.hive.blog/1536x0/https://files.peakd.com/file/peakd-hive/green77/gGQutTRs-hive-spacer.png

---

**ITALIAN**
**05-07-2024 - Sistemi energetici - Turbina ad azione pluristadio a salti di velocità [EN]-[IT]**

***Turbina ad azione pluristadio a salti di velocità***
Le turbine Curtis sono le più note turbine ad azione a salti di velocità.

*funzionamento*
Le turbine Curtis sono costituite da un distributore che elabora tutta l’energia di pressione in energia cinetica. Proprio in questa fase si ha l’abbattimento di tutto il salto di pressione. A seguito del distributore troviamo due o tre giranti ad azione. Queste giranti sono intervallate da uno o due raddrizzatori, ognuna delle quali trasforma una frazione dell’energia cinetica del flusso in ingresso in girante in lavoro meccanico.
NOTA:
Il raddrizzatore non elabora né energia cinetica né di pressione.
Qui di seguito uno schema di una turbina a vapore di tipo Curtis.

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23uFwixB45JAdF38ybZMRjdQzoxKdw4XkqjfsGXKgkLxJCcHooXQAy7xpvPgUnBCBh1Zz.png)

**Triangoli delle velocità**
Qui di seguito uno schizzo in cui sono tracciati i triangoli delle velocità (colore grigio)

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23wgoGrprKWpPpczcZrubUseXjiJU3LBpJauWMrDtUDKvgVy8yyc82nxvxDv8hCn785C1.png)

**Rendimento della palettatura**
Qui di seguito l'espressione del rendimento della palettatura

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/EoCpLynGkZNs72PqMx8q9nTwH6ocjqSc6BoKjuZ1CgYwHrPQzobrH6e4tFL7Z3uVGrb.png)

Nel caso teorico si ha un valore massimo di rendimento ηp=0.67.

NOTA:
Le turbine Curtis, rispetto alle turbine De Laval, operano in condizioni di massimo rendimento con un rapporto u/c1 inferiore, e pertanto sono capaci di elaborare un salto entalpico maggiore seppur con un rendimento inferiore.

Qui di seguito un piccolo grafico con turbine De Laval e Curtis

![image.png](https://files.peakd.com/file/peakd-hive/stefano.massari/23tcP5UHDuvJUugbxYvRFhV7U4GGDtkbiLDqtAkaBgh5R16GzjQnmS3CV5HM5Y2wxmrsm.png)

**Conclusioni**
Le turbine Curtis e le turbine De Laval sono due tipi diversi di turbine a vapore utilizzate per convertire l'energia del vapore in energia meccanica.

**Domanda**
Questa è la prima volta che sentite parlare di turbine Curtis e turbine De Laval?
